Query Builder

The Query Builder in OctoMesh Refinery Studio allows you to create, save, and execute queries against your OctoMesh Runtime entities. It provides a visual interface for building queries without writing GraphQL code directly.

Accessing Query Builder

Navigate to Repository > Query Builder to access the query management interface.

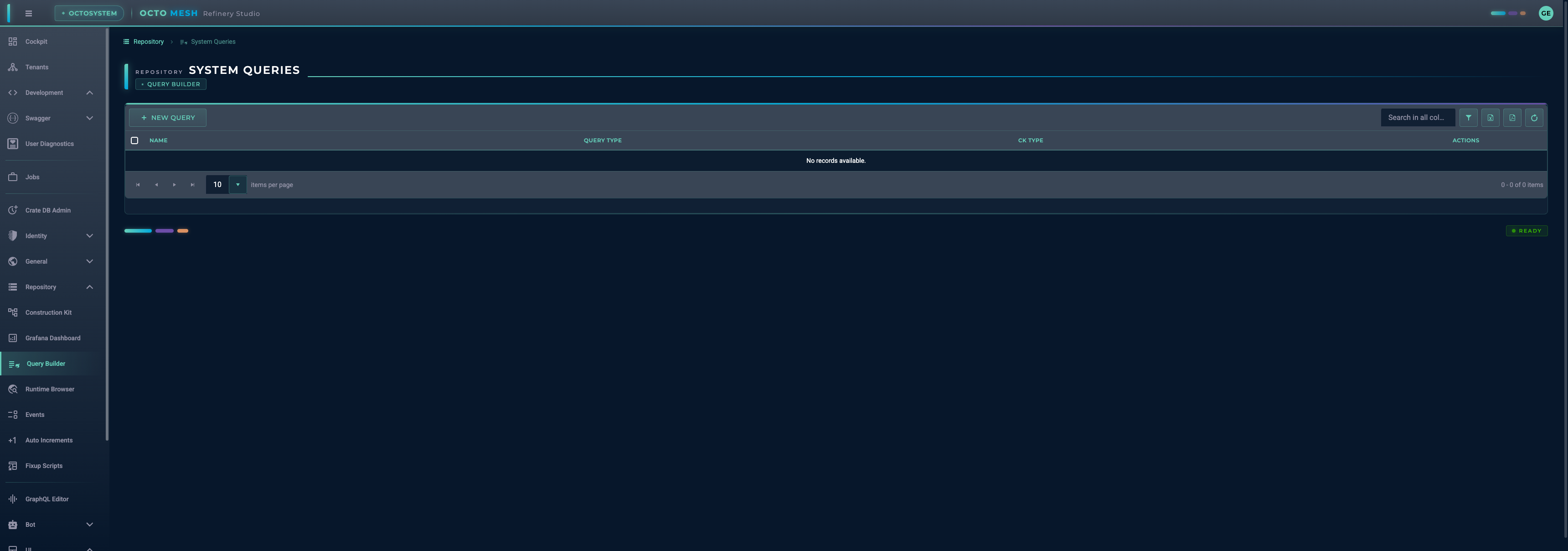

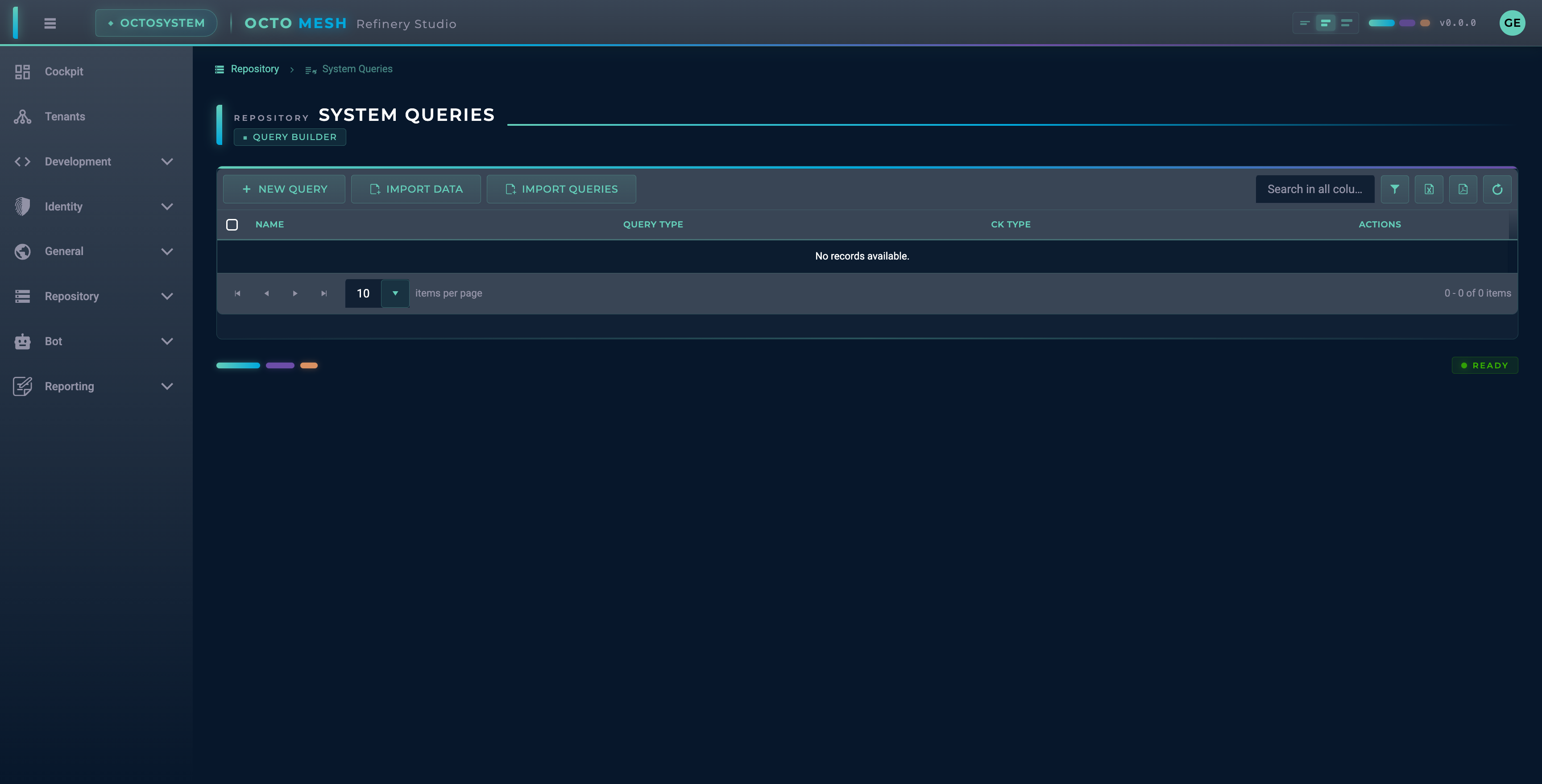

The list view shows all saved queries with their name, query type, and CK type. It provides actions to edit or delete them.

Toolbar Actions

Button	Description
NEW QUERY	Create a new query
IMPORT DATA	Import data from a file
IMPORT QUERIES	Import query definitions from a file
Export to Excel	Export the query list to an Excel file
Export to PDF	Export the query list to a PDF file
Refresh Data	Reload the query list from the server

Row Actions

Each query row provides the following action buttons:

Action	Description
Run	Execute the query and view results
Edit	Open the query in the editor

Context Menu

Right-clicking on a query row opens a context menu with additional actions:

Action	Description
Duplicate	Create a copy of the query
Export Results	Execute the query and export results as a ZIP file
Export Query	Export the query definition as a ZIP file
Delete	Delete the query (with confirmation)

Creating a New Query

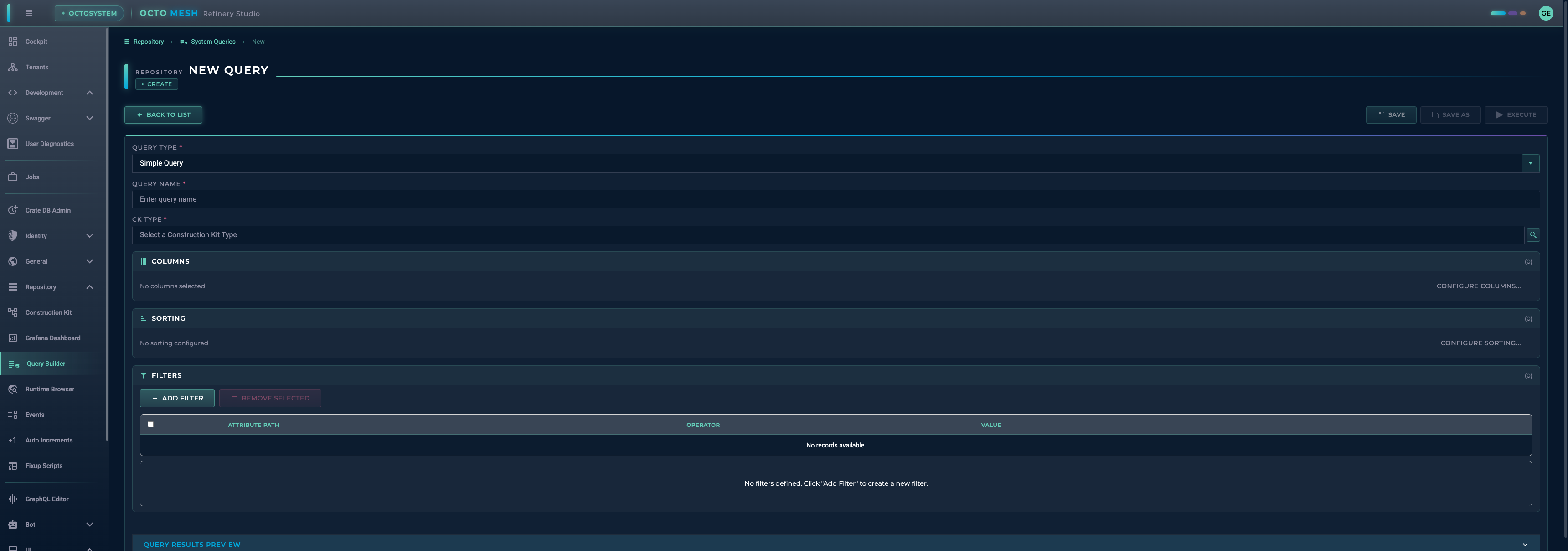

Click NEW QUERY to open the query configuration form.

Query Configuration

The query form has several sections:

Basic Settings

The basic settings are arranged in two rows for a compact layout:

Row 1: Query Type and Name

Field	Description

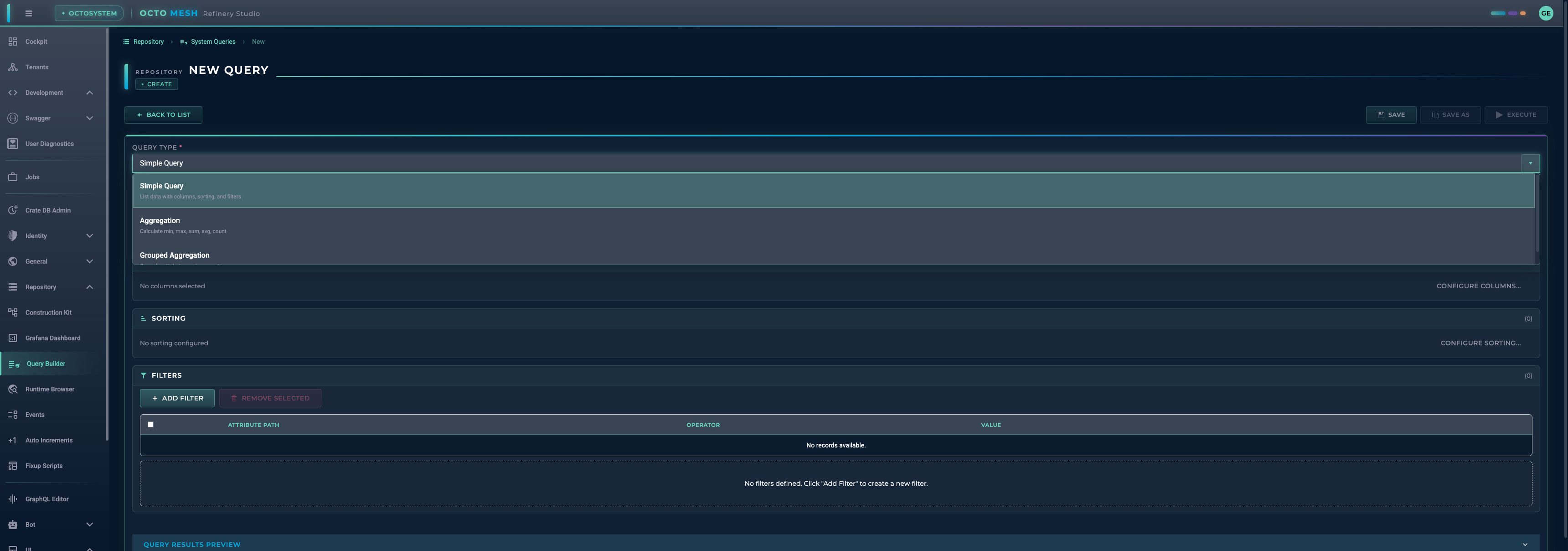

Query Type	Select the type of query (Simple, Aggregation, or Grouped Aggregation). Each option includes a short description.
Query Name	A descriptive name for your query

Row 2: CK Type and Navigation Filter Mode

Field	Description
CK Type	The Construction Kit type to query
Navigation Filter Mode	Controls how entities without matching navigation associations are handled (see below)

Navigation Filter Mode

The Navigation Filter Mode determines how entities are treated when they have no matching navigation associations:

Mode	Description
Filter	Entities without matching navigation associations are excluded from the result set.
Include	Entities without matching navigation associations are kept with null values.

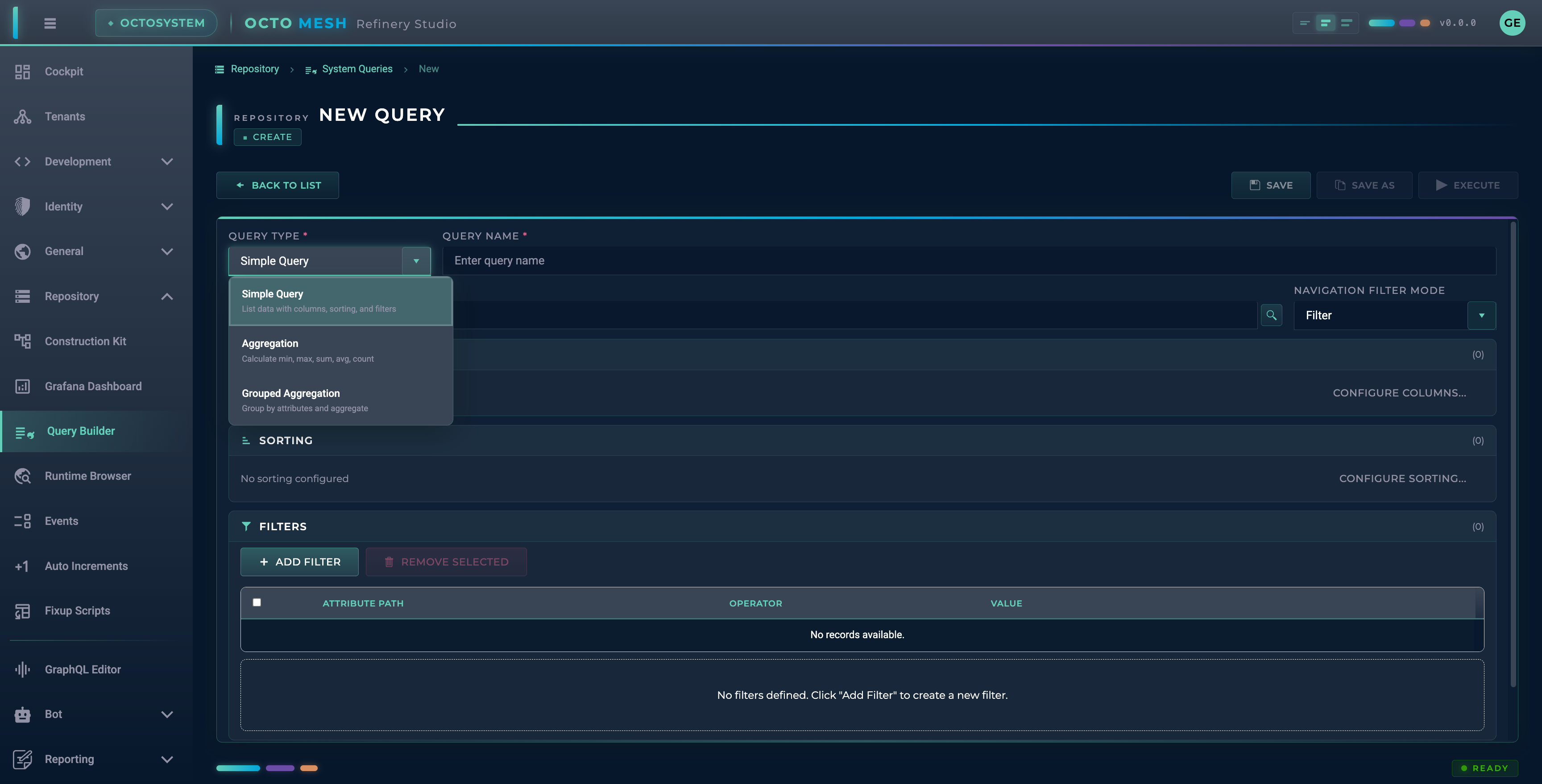

Query Types

Type	Description
Simple Query	Returns a list of entities with selected attributes
Aggregation	Performs aggregate calculations (COUNT, SUM, AVG, MIN, MAX) on all matching entities
Grouped Aggregation	Groups entities by an attribute and performs aggregate calculations per group

Selecting a CK Type

Click the SELECT button next to the CK Type field to open the type selector.

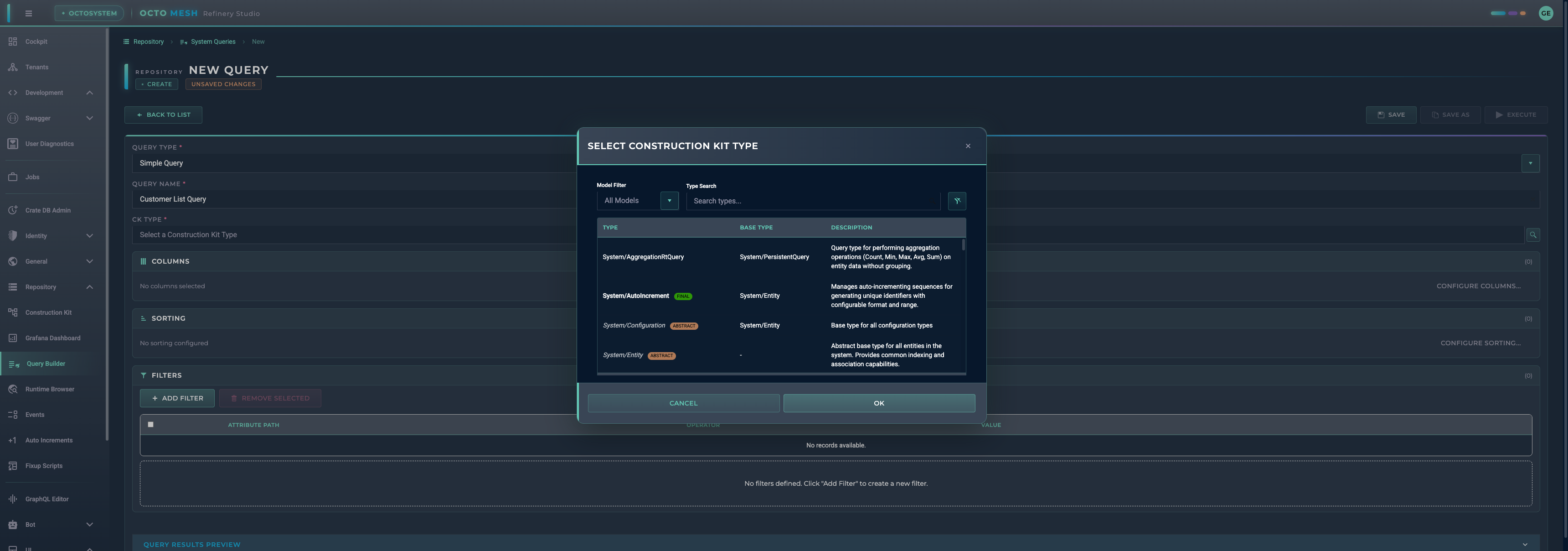

The selector dialog shows all available Construction Kit types organized by package. Use the search field to filter types by name. Click on a type to select it.

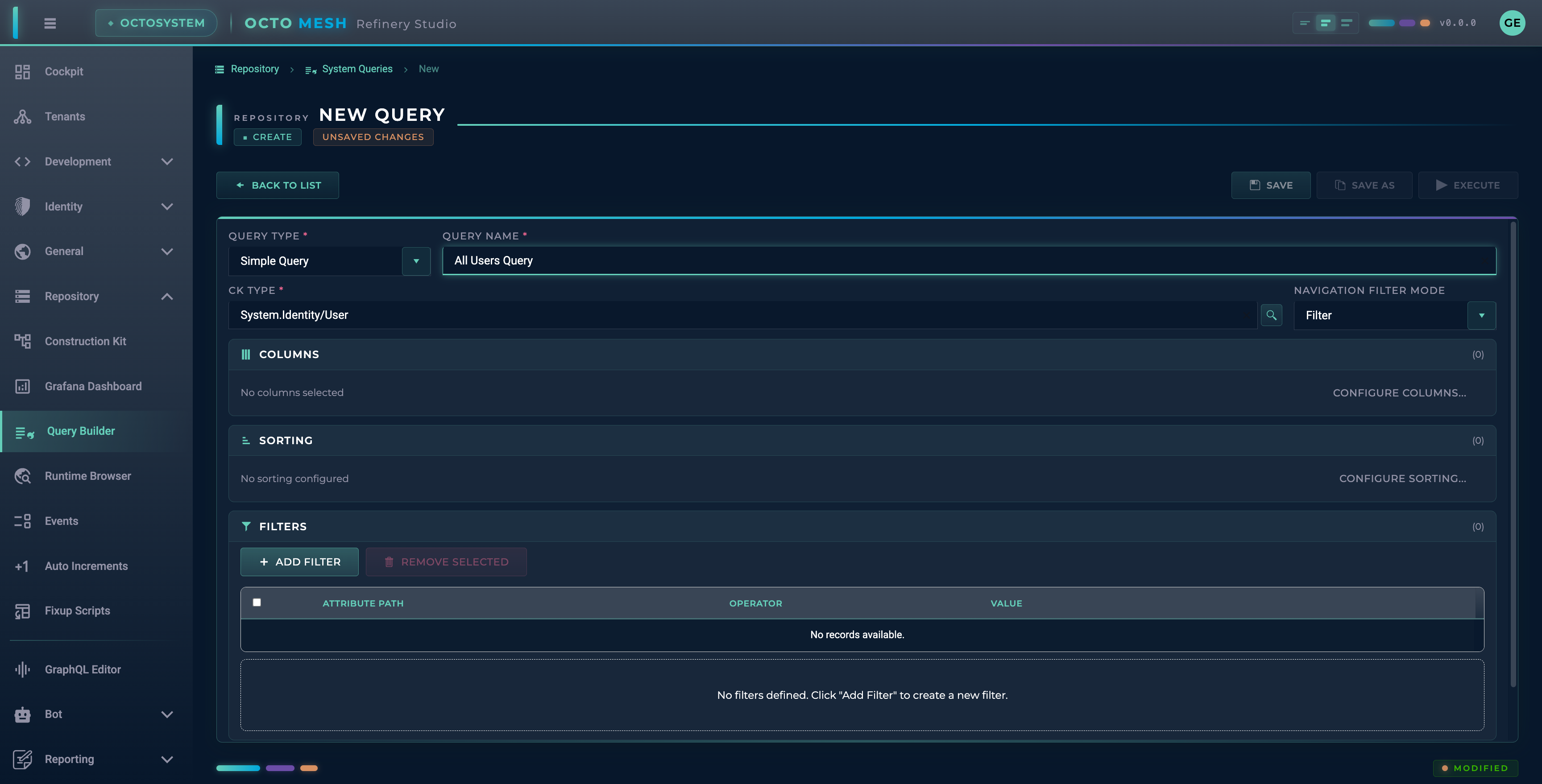

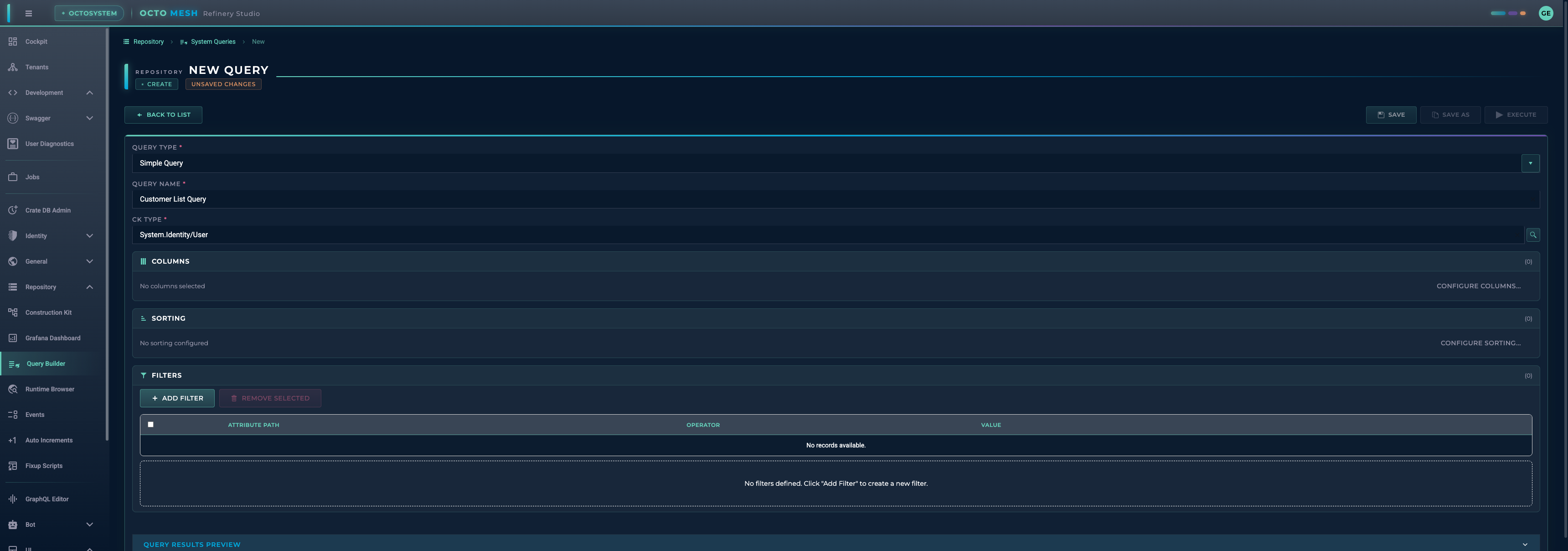

After selection, the CK Type field shows the selected type (e.g., System.Identity/User).

Simple Query Configuration

For Simple Queries, you configure columns, sorting, and filters.

Columns

Click ADD COLUMNS to select which attributes to include in query results.

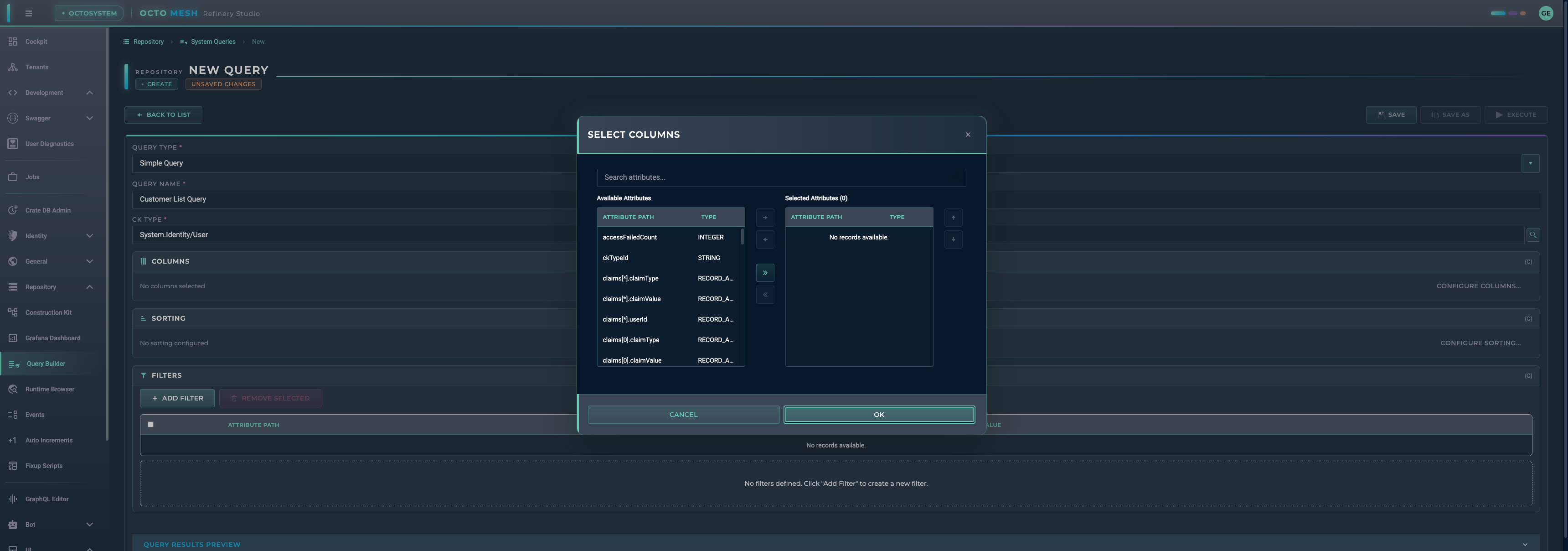

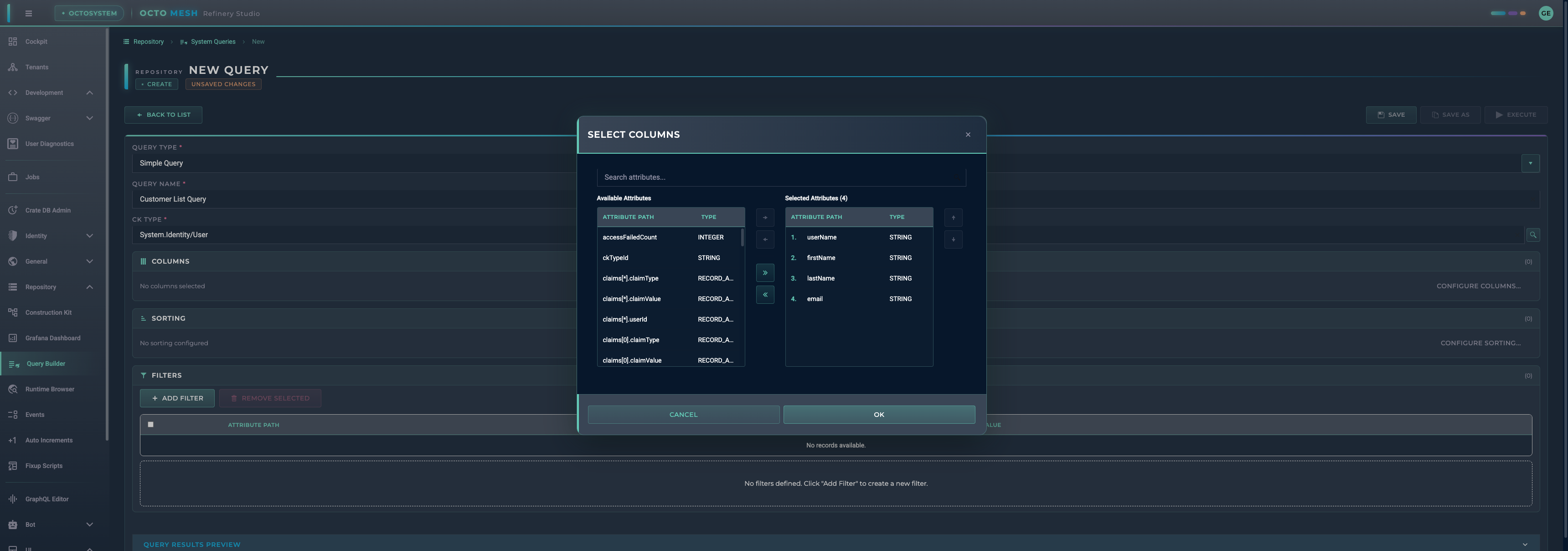

The column selection dialog shows:

• Available attributes (left panel): All attributes from the selected CK Type with their data types
• Selected columns (right panel): Attributes included in query results

Attribute types displayed include:

• STRING - Text values
• INTEGER - Whole numbers
• INTEGER_64 - Large whole numbers
• BOOLEAN - True/false values
• DATE_TIME - Date and time values
• DATE_TIME_OFFSET - Date and time with timezone
• STRING_ARRAY - List of text values
• RECORD_ARRAY - List of complex records

Use the arrow buttons to:

• Add selected attributes to the query
• Remove attributes from the query
• Reorder columns (move up/down)

Sorting

Add sorting rules to control the order of results:

1. Click ADD SORTING
2. Select the attribute to sort by
3. Choose ascending or descending order

Multiple sort rules are applied in order.

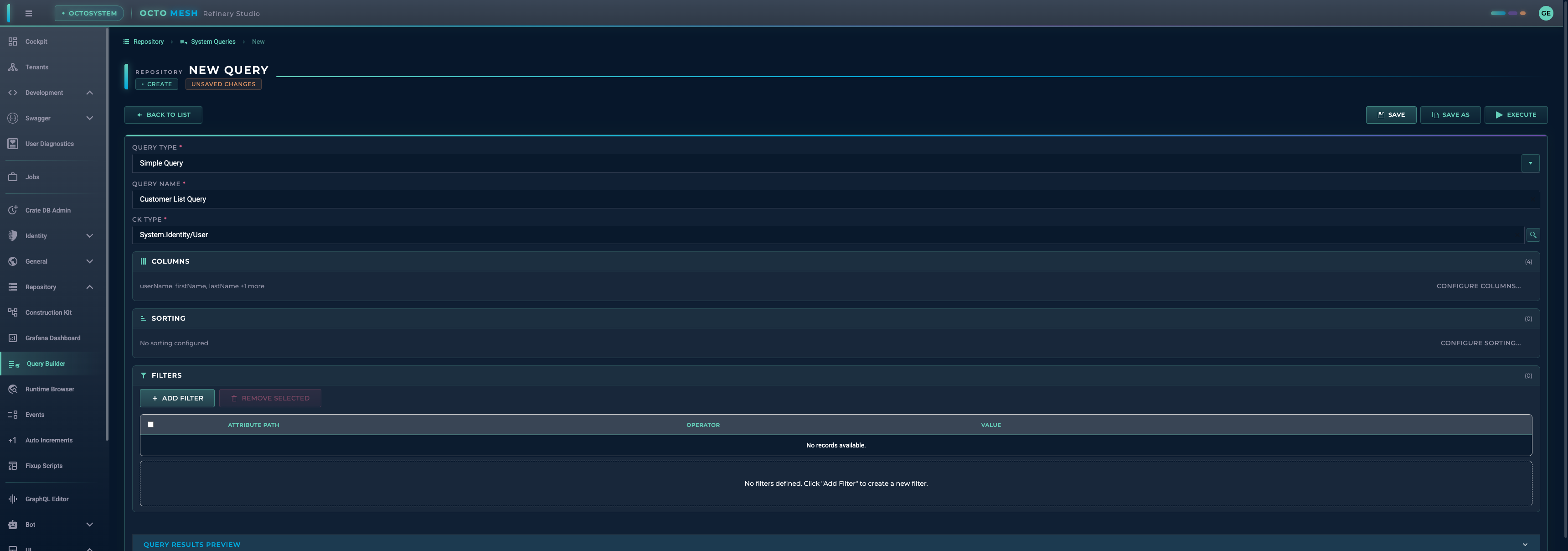

Configured Query

Once columns are configured:

• The SAVE button becomes enabled
• The EXECUTE button becomes enabled
• Column count is displayed (e.g., "4 Columns Selected")

Filters

Filters narrow down the query results based on attribute values.

Adding Filters

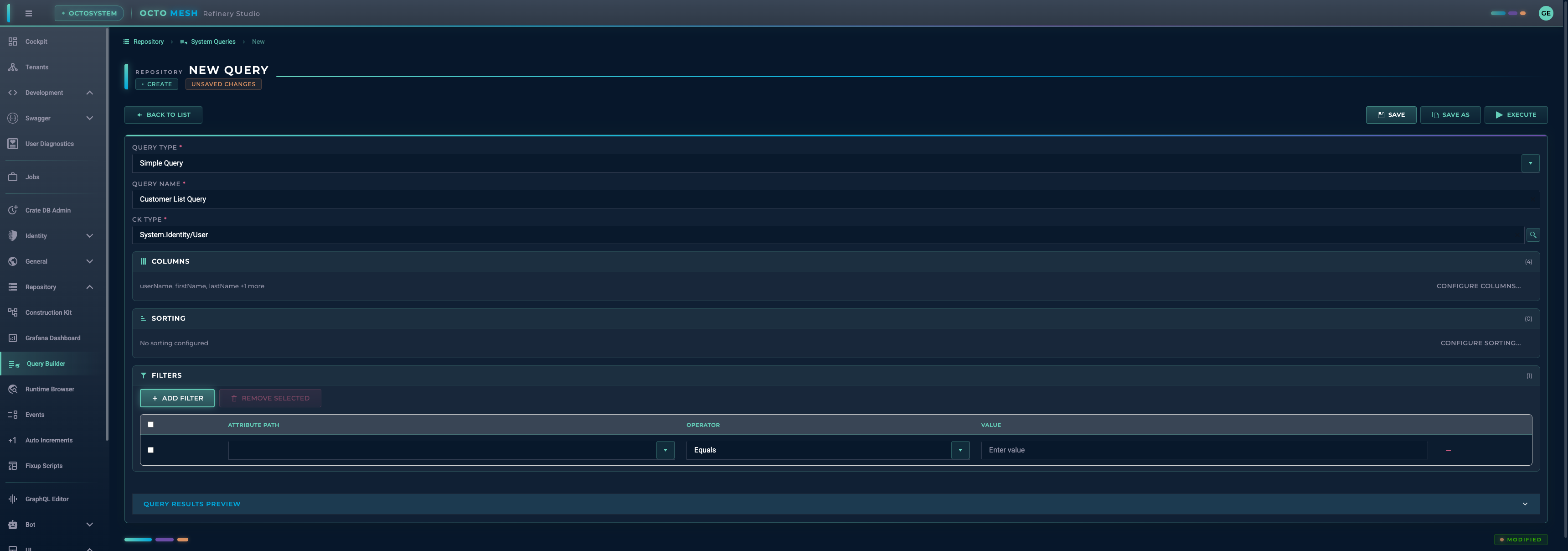

Click ADD FILTER to add a filter row.

Each filter consists of:

• Attribute: The attribute to filter on
• Operator: The comparison operator
• Value: The value to compare against

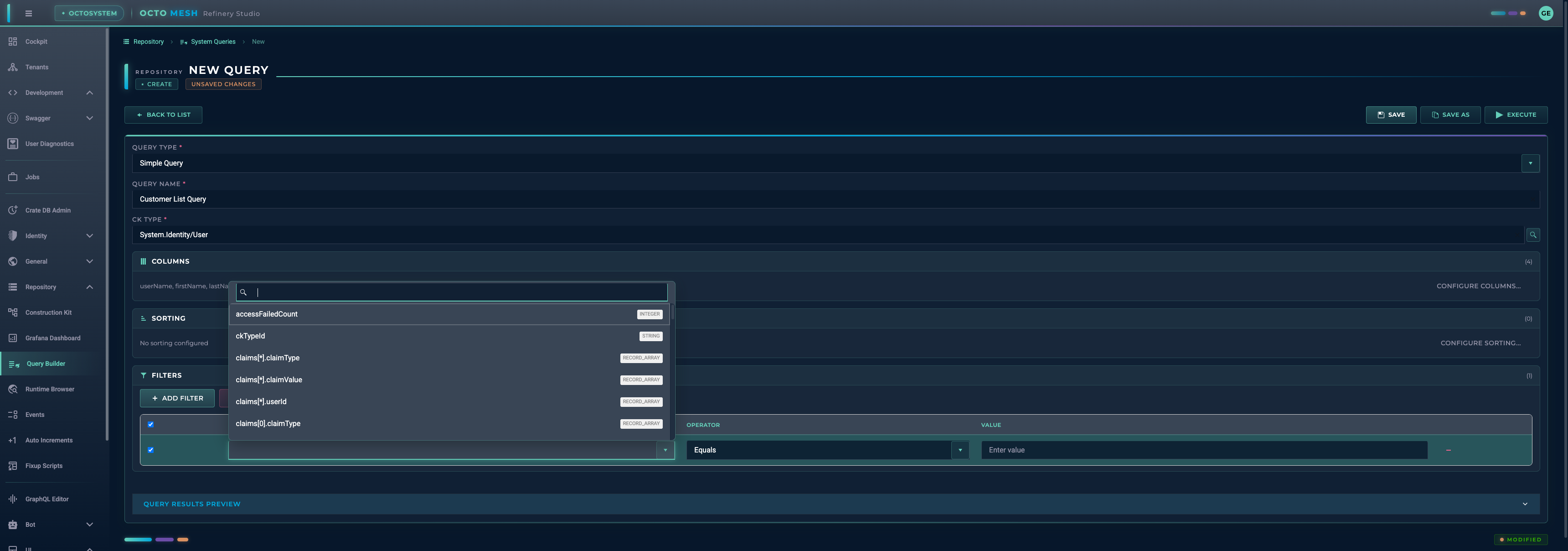

Filter Attributes

The attribute dropdown shows all available attributes with their data types. The value input adapts based on the attribute type:

• Boolean attributes show a toggle
• String attributes show a text input
• Number attributes show a numeric input
• Date attributes show a date picker

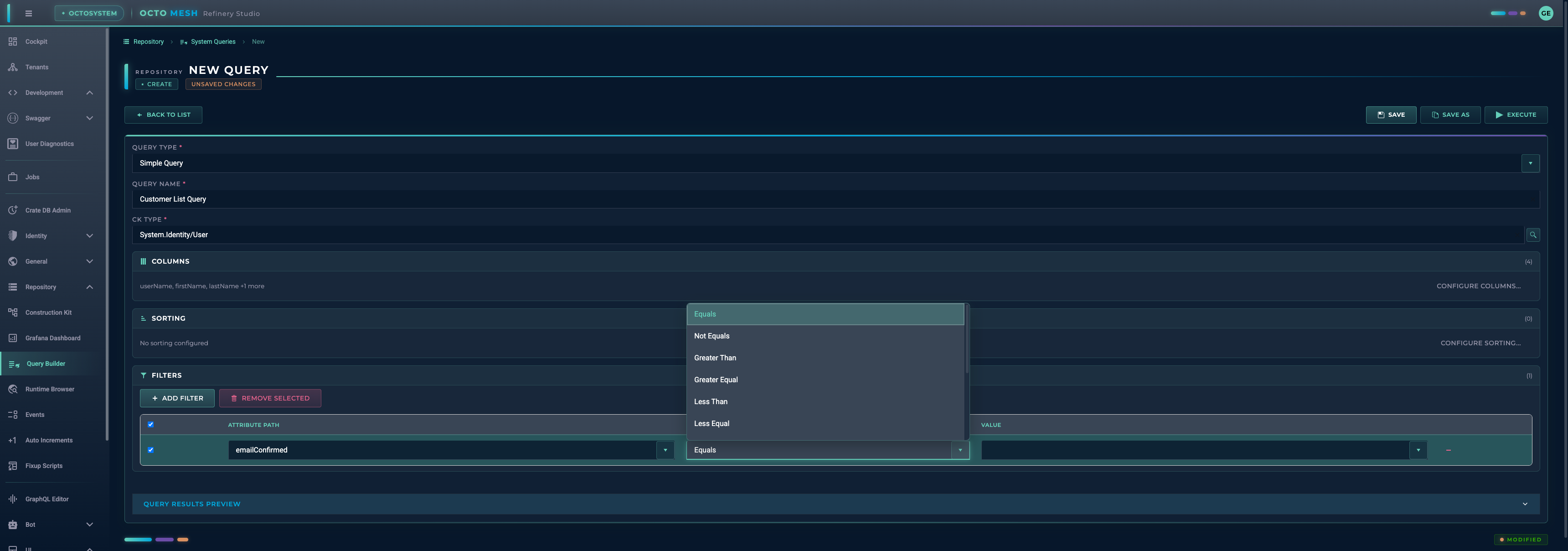

Filter Operators

Operator	Description
Equals	Exact match
Not Equals	Does not match
Greater Than	Value is greater than
Greater Equal	Value is greater than or equal to
Less Than	Value is less than
Less Equal	Value is less than or equal to
Like	Pattern match (use % as wildcard)
In	Value is in a list
Not In	Value is not in a list
Any Equals	Any array element matches
Any Like	Any array element matches pattern
Match RegEx	Regular expression match

Multiple Filters

You can add multiple filters. All filters are combined with AND logic (all conditions must be true).

Aggregation Queries

Aggregation queries calculate summary statistics instead of returning individual entities.

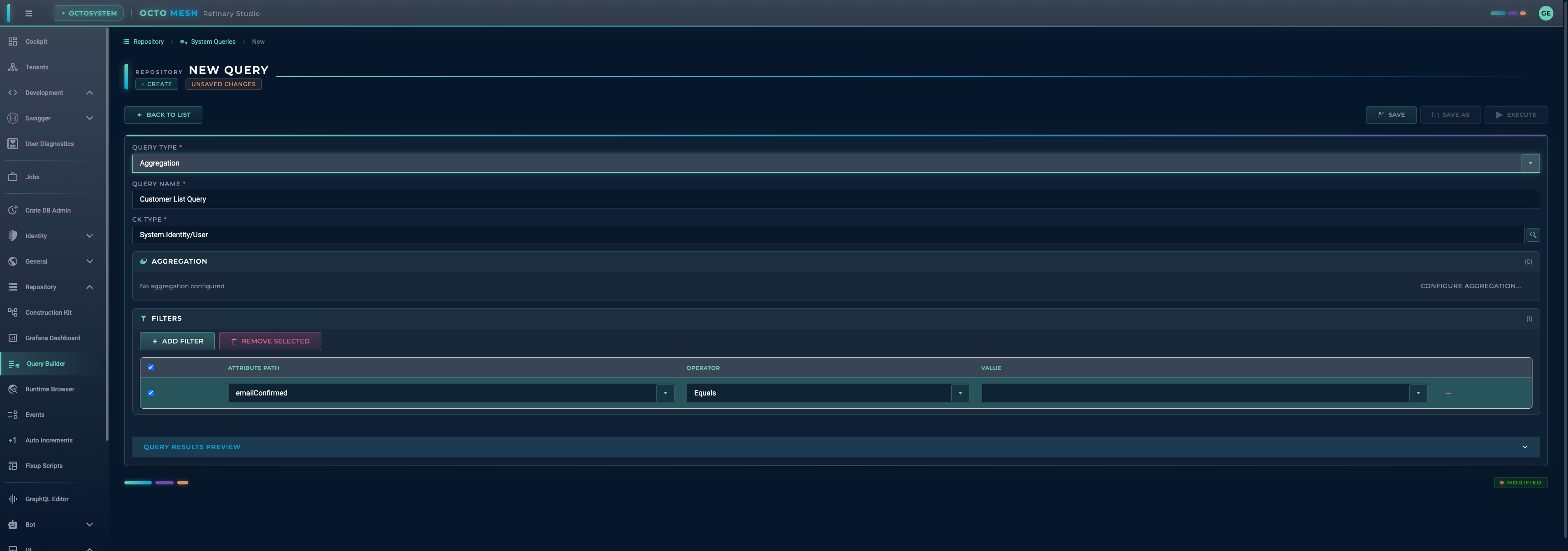

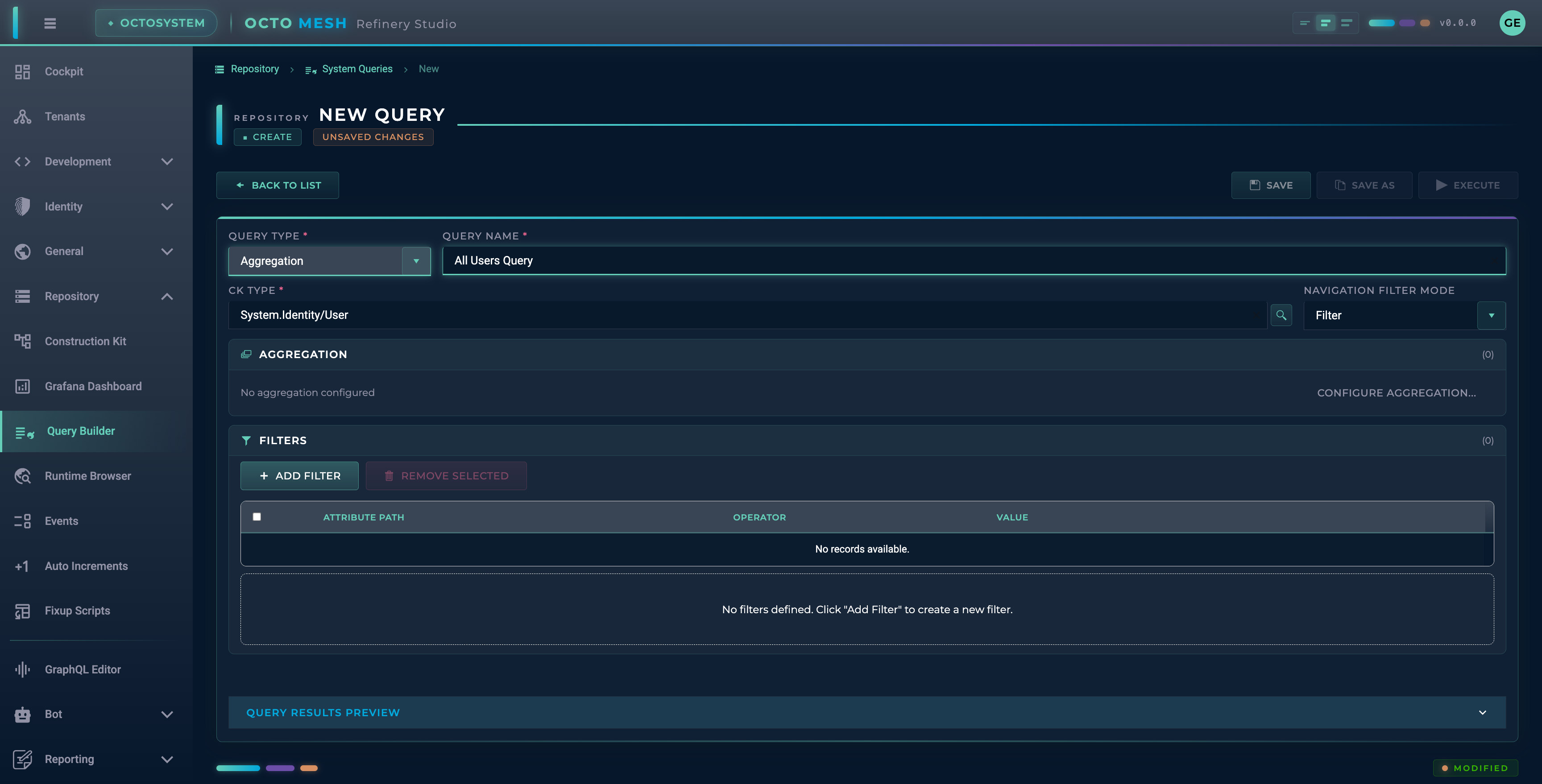

For Aggregation queries, the COLUMNS and SORTING sections are replaced with an AGGREGATION section.

Configuring Aggregations

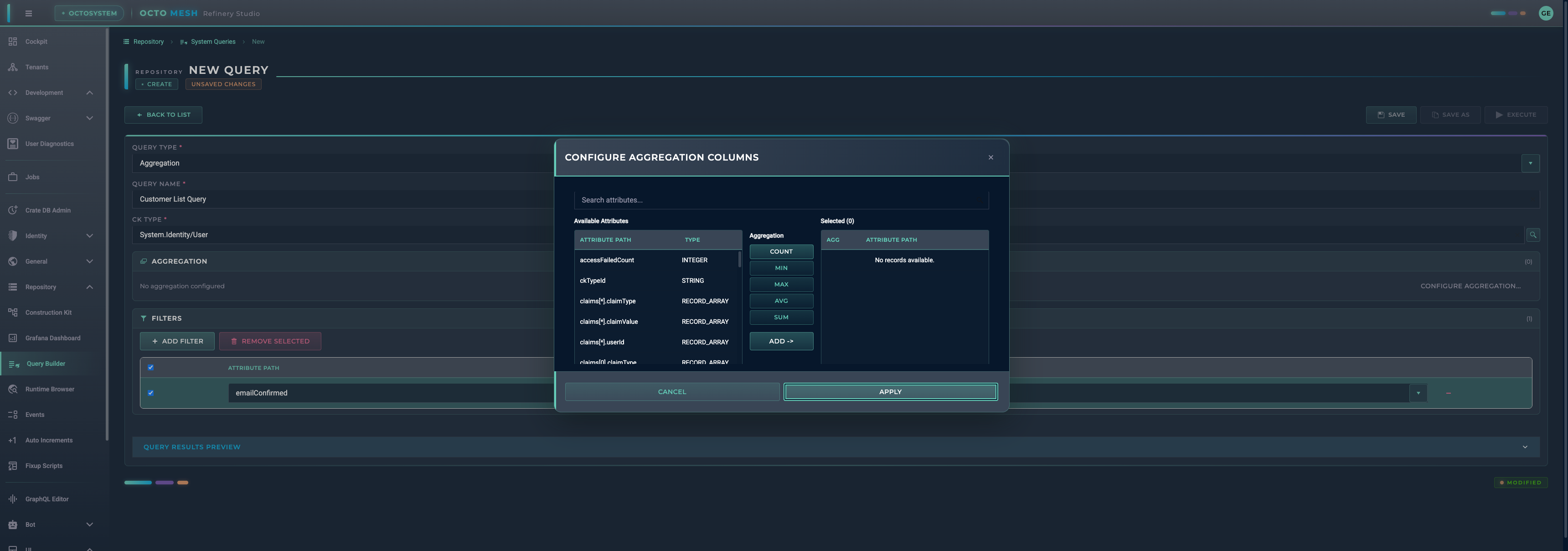

Click ADD AGGREGATION to open the aggregation dialog.

Configure each aggregation:

Field	Description
Function	The aggregation function (COUNT, MIN, MAX, AVG, SUM)
Attribute	The attribute to aggregate (not needed for COUNT)
Name	Display name for the aggregation result

Aggregation Functions

Function	Description
COUNT	Count of matching entities
MIN	Minimum value
MAX	Maximum value
AVG	Average (mean) value
SUM	Total sum of values

Grouped Aggregation Queries

Grouped Aggregation queries combine grouping with aggregation. Results are grouped by one attribute, and aggregations are calculated for each group.

Configuration includes:

• Group By: The attribute to group results by
• Aggregations: One or more aggregation functions

Example: Group users by department and count users per department.

Executing Queries

Click EXECUTE to run the query and see results. The results are displayed in a table format below the query configuration.

Saving Queries

Click SAVE to save the query configuration. Saved queries appear in the Query Builder list and can be:

• Reused for data exploration
• Referenced in MeshBoard widgets
• Shared across the tenant

Best Practices

1. Name queries descriptively: Use clear names that indicate what the query returns
2. Use filters effectively: Narrow down results to improve performance
3. Select only needed columns: Include only attributes you need to reduce data transfer
4. Test before saving: Execute the query to verify results before saving
5. Use aggregations for summaries: Use aggregation queries instead of fetching all data and calculating client-side
6. Consider performance: Complex queries on large datasets may take longer to execute

Use Cases

Data Exploration

• Browse entities of a specific type
• Search for entities matching criteria
• View entity attributes and relationships

Reporting

• Count entities by status
• Calculate averages and totals
• Group and summarize data

Dashboard Data Sources

• Create queries for MeshBoard widgets
• Build reusable data extractions
• Set up filtered views for specific use cases

Power BI Integration

• Use saved queries as data sources for Power BI reports and dashboards
• Leverage aggregation queries for pre-calculated summaries in Power BI

Grafana Integration

• Connect saved queries to Grafana dashboards for real-time monitoring
• Use aggregation queries for time-series and metric visualizations
